clinicalfair

Algorithmic Fairness Assessment for Clinical Prediction Models

Overview

clinicalfair is a post-hoc fairness auditing toolkit for clinical prediction models. It evaluates existing models by computing group-wise fairness metrics, visualizing disparities, and performing threshold-based mitigation – motivated by regulatory expectations for transparency in clinical AI.

Metrics: demographic parity, equalized odds, predictive parity, AUC, Brier score – with optional bootstrap confidence intervals
Visualization: disparity plots, ROC by group, calibration by group
Mitigation: group-specific threshold optimization with configurable grid resolution (default 0.01)
Intersectional: cross-tabulated analysis (race x sex x age) with automatic small-group filtering
Reporting: four-fifths rule violation detection

Fairness audit

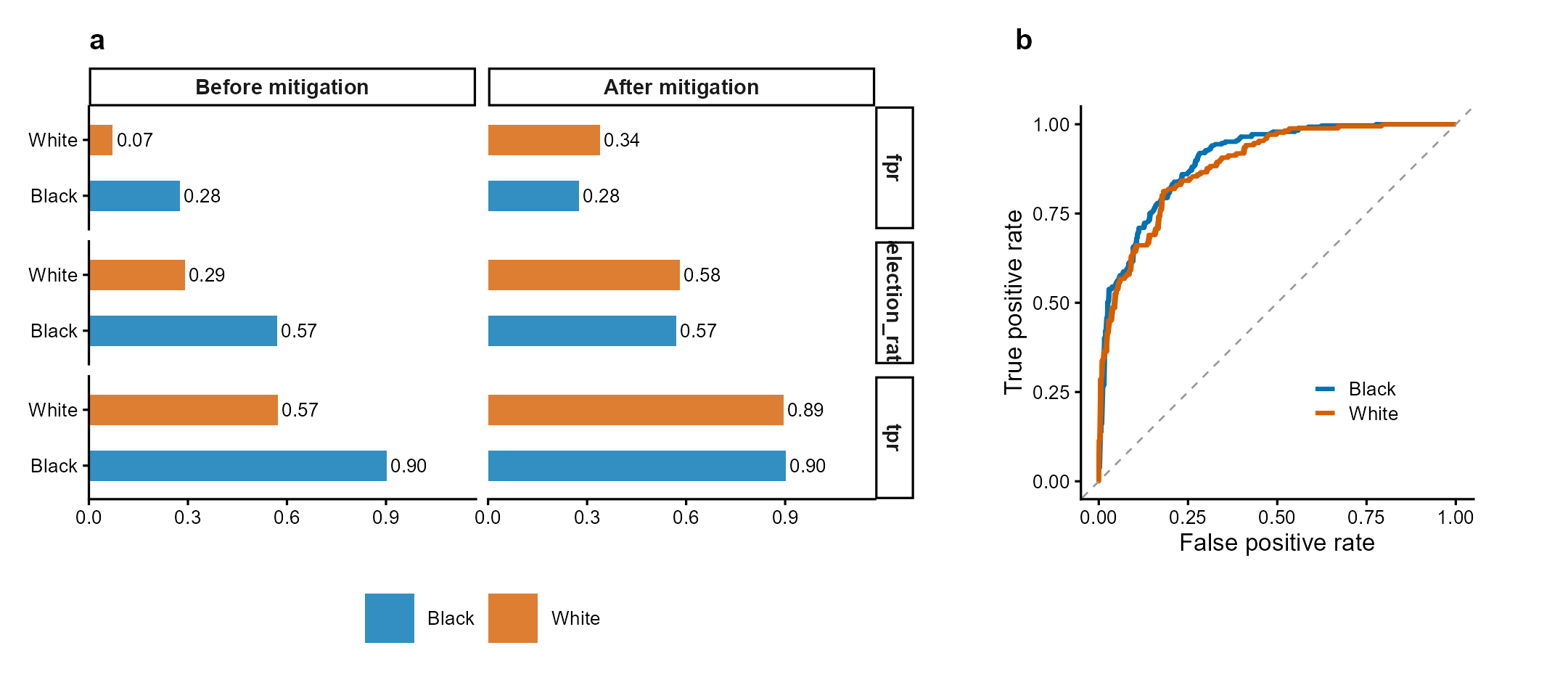

Figure 1 | Fairness audit with threshold mitigation. (a) Group-wise selection rate, TPR, and FPR before and after equalized-odds threshold optimization. Mitigation reduces cross-group TPR disparity while maintaining acceptable accuracy. (b) ROC curves by racial group showing differential model performance. Data: COMPAS-style simulated recidivism predictions. Methods: Hardt et al. (2016); Obermeyer et al. (2019).

Why clinicalfair?

Existing R packages approach fairness from different angles:

Package	Focus	clinicalfair difference
`fairmodels`	Model-level fairness (wraps mlr3)	clinicalfair is model-agnostic: works with any predicted probabilities
`fairness`	Metric computation	clinicalfair adds threshold mitigation + intersectional analysis
`fairmetrics`	CIs for fairness metrics	clinicalfair also provides bootstrap CIs, plus audit reports with four-fifths rule screening

clinicalfair is designed for the clinical audit use case: a clinician or regulator receives a trained model and needs to answer “is this model fair across patient subgroups?” in one function call, with actionable output.

# One-line audit
fairness_report(fairness_data(predictions, labels, race))

Installation

# From GitHub:
devtools::install_github("CuiweiG/clinicalfair")

# After CRAN acceptance:
install.packages("clinicalfair")

Quick start

library(clinicalfair)
data(compas_sim)

# Create fairness evaluation object
fd <- fairness_data(
    predictions = compas_sim$risk_score,
    labels = compas_sim$recidivism,
    protected_attr = compas_sim$race
)

# Compute metrics
fairness_metrics(fd)

# With bootstrap confidence intervals
fairness_metrics(fd, ci = TRUE, n_boot = 2000)

# Generate audit report
fairness_report(fd)

# Mitigate via threshold optimization
threshold_optimize(fd, objective = "equalized_odds")

Calibration by group

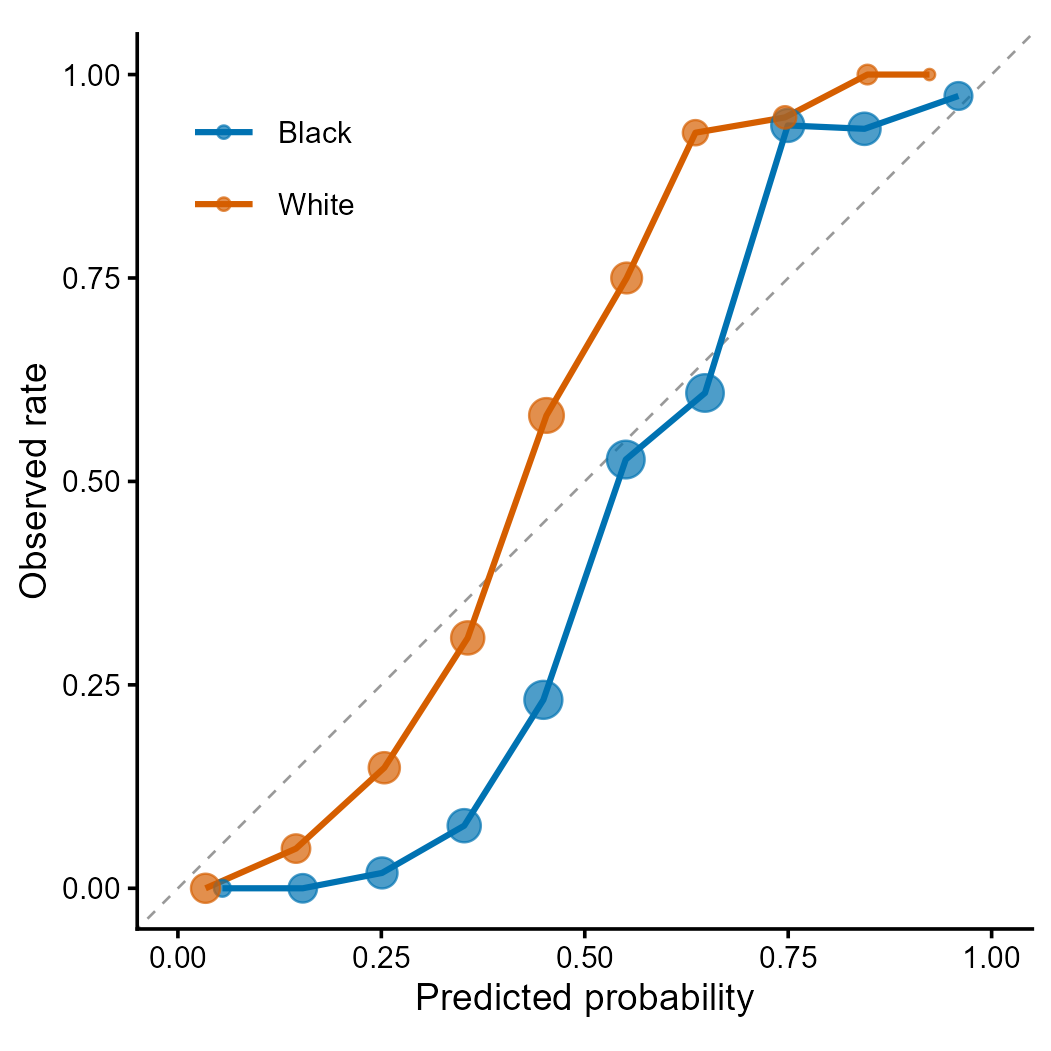

Figure 2 | Calibration curves by racial group. Each point represents a decile bin; point size proportional to sample count. Deviation from the diagonal indicates miscalibration. Differential calibration across groups is a key fairness concern identified by Obermeyer et al. (2019) Science 366:447.

Functions

Function	Description
`fairness_data()`	Bundle predictions, labels, protected attributes
`fairness_metrics()`	Compute group-wise fairness metrics (optional bootstrap CIs)
`fairness_report()`	Generate audit report with four-fifths rule screening
`threshold_optimize()`	Group-specific threshold mitigation (configurable grid resolution)
`intersectional_fairness()`	Cross-tabulated multi-attribute analysis (small-group filtering)
`autoplot()`	Disparity bar plots (S3 method)
`plot_roc()`	ROC curves by protected group
`plot_calibration()`	Calibration curves by group

Key references

Obermeyer Z et al. (2019). Dissecting racial bias in an algorithm. Science 366:447. doi:10.1126/science.aax2342
Hardt M et al. (2016). Equality of Opportunity in Supervised Learning. NeurIPS.
FDA (2021). Artificial Intelligence/Machine Learning (AI/ML)-Based Software as a Medical Device (SaMD) Action Plan.

License

MIT
