R package dbscan - Density-Based Spatial Clustering of Applications with Noise (DBSCAN) and Related Algorithms

Maintainer: Michael Hahsler

Introduction

This R package (Hahsler et al. 2019) provides a fast C++ (re)implementation of several density-based algorithms with a focus on the DBSCAN family for clustering spatial data. The package includes:

Clustering

• DBSCAN: Density-based spatial clustering of applications with noise (Ester et al. 1996).
• FOSC: Framework for optimal selection of clusters for unsupervised and semisupervised clustering of hierarchical cluster trees (Campello et al. 2013).
• HDBSCAN: Hierarchical DBSCAN with simplified hierarchy extraction (Campello et al. 2015).
• Jarvis-Patrick Clustering: Clustering using a similarity measure based on shared near neighbors (Jarvis and Patrick 1973).
• OPTICS/OPTICSXi: Ordering points to identify the clustering structure and cluster extraction methods (Ankerst et al. 1999).
• SNN Clustering: Shared nearest neighbor clustering (Ertöz et al. 2003).

Outlier Detection

• LOF: Local outlier factor algorithm (Breunig et al. 2000).
• GLOSH: Global-Local Outlier Score from Hierarchies algorithm (Campello et al. 2015).

Cluster Evaluation

• DBCV: Density-based clustering validation (Moulavi et al. 2014).

Fast Nearest-Neighbor Search (using kd-trees)

• kNN search
• Fixed-radius NN search

The implementations use the kd-tree data structure (from library ANN) for faster k-nearest neighbor search, and are for Euclidean distance typically faster than the native R implementations (e.g., dbscan in package fpc), or the implementations in WEKA, ELKI and Python’s scikit-learn.

The following R packages use dbscan: AnimalSequences, autoFlagR, bioregion, clayringsmiletus, CLONETv2, clusterWebApp, cordillera, CPC, crosshap, crownsegmentr, cyclicwave, daltoolbox, DataSimilarity, diceR, discoCVI, dobin, doc2vec, dPCP, DrData, EHRtemporalVariability, emcAdr, eventstream, evprof, fastml, FCPS, fdacluster, flowcluster, flownet, FORTLS, FuelDeep3D, funtimes, HaploVar, immunaut, karyotapR, ksharp, LLMing, LOMAR, maotai, MapperAlgo, mditools, metaCluster, metasnf, mlr3cluster, neuroim2, oclust, omicsTools, openSkies, opticskxi, OTclust, outlierensembles, outlierMBC, pagoda2, parameters, ParBayesianOptimization, performance, pguIMP, phynotype, PiC, quickOutlier, R4VN, rarefun, rcrisp, Rhobots, riemannianStats, riskutility, rMultiNet, rtemis, SampleCore, seriation, sfdep, sfhotspot, sfnetworks, sharp, smotefamily, snap, spCF, spdep, specmine, spNetwork, squat, ssel, ssMRCD, STATassist, stdbscan, stream, SuperCell, synr, tbnb, TextAnalysisR, tidyclust, tidylearn, tidySEM, tlsR, VBphenoR, VIProDesign, weird

Installation

Stable CRAN version: Install from within R with

install.packages("dbscan")

Current development version: Install from r-universe.

install.packages("dbscan",
    repos = c("https://mhahsler.r-universe.dev",
              "https://cloud.r-project.org/"))

Usage

Load the package and use the numeric variables in the iris dataset

library("dbscan")

data("iris")
x <- as.matrix(iris[, 1:4])

DBSCAN

db <- dbscan(x, eps = 0.42, minPts = 5)
db

## DBSCAN clustering for 150 objects.
## Parameters: eps = 0.42, minPts = 5
## Using euclidean distances and borderpoints = TRUE
## The clustering contains 3 cluster(s) and 29 noise points.
##
##  0  1  2  3
## 29 48 37 36
##
## Available fields: cluster, eps, minPts, metric, borderPoints

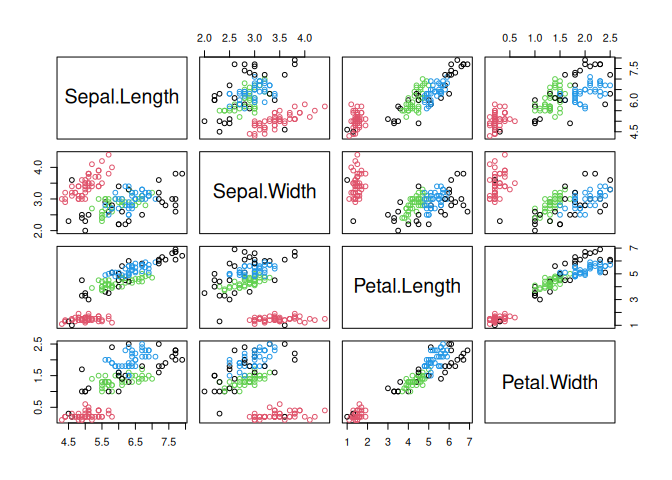

Visualize the resulting clustering (noise points are shown in black).

pairs(x, col = db$cluster + 1L)

OPTICS

opt <- optics(x, eps = 1, minPts = 4)
opt

## OPTICS ordering/clustering for 150 objects.
## Parameters: minPts = 4, eps = 1, eps_cl = NA, xi = NA
## Available fields: order, reachdist, coredist, predecessor, minPts, eps,
##                   eps_cl, xi

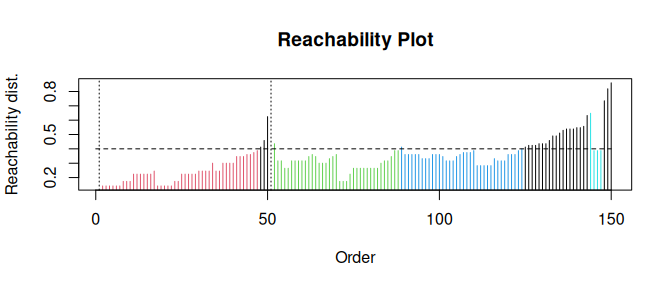

Extract DBSCAN-like clustering from OPTICS and create a reachability plot (extracted DBSCAN clusters at eps_cl=.4 are colored)

opt <- extractDBSCAN(opt, eps_cl = 0.4)
plot(opt)

HDBSCAN

hdb <- hdbscan(x, minPts = 4)
hdb

## HDBSCAN clustering for 150 objects.
## Parameters: minPts = 4
## The clustering contains 2 cluster(s) and 0 noise points.
##
##   1   2
## 100  50
##
## Available fields: cluster, minPts, coredist, cluster_scores,
##                   membership_prob, outlier_scores, hc

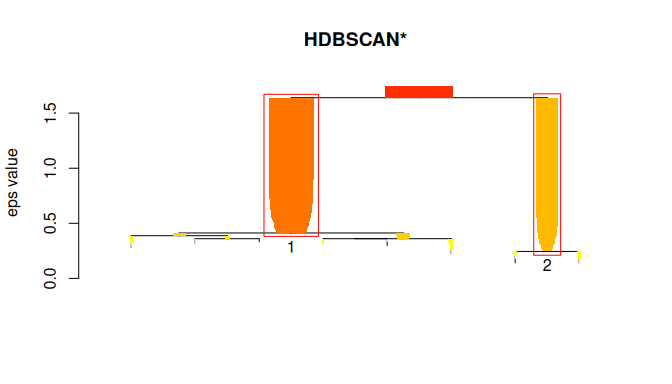

Visualize the hierarchical clustering as a simplified tree. HDBSCAN finds 2 stable clusters.

plot(hdb, show_flat = TRUE)

Additional guides

• Using dbscan with tidyverse
• Using dbscan from Python

License

The dbscan package is licensed under the GNU General Public License (GPL) Version 3 or later.

The OPTICSXi R implementation in R/optics_extractXi.R was directly ported from the ELKI framework’s Java implementation with permission by the original author, Erich Schubert. This function is redistributed under the stricter GNU AGPLv3. Remove the file and function to use the package under the GNU GPL v3 license.

Citation request

To cite package ‘dbscan’ in publications use:

Hahsler M, Piekenbrock M, Doran D (2019). “dbscan: Fast Density-Based Clustering with R.” Journal of Statistical Software, 91(1), 1-30. doi:10.18637/jss.v091.i01 https://doi.org/10.18637/jss.v091.i01.

@Article{,
  title = {{dbscan}: Fast Density-Based Clustering with {R}},
  author = {Michael Hahsler and Matthew Piekenbrock and Derek Doran},
  journal = {Journal of Statistical Software},
  year = {2019},
  volume = {91},
  number = {1},
  pages = {1--30},
  doi = {10.18637/jss.v091.i01},
}
